Context

During the first half of 2023, CERT Intrinsec handled several incidents involving Akira ransomware group. Companies detected ransomware’s presence, either by reacting to alerts triggered by their security solutions, or, in worst case, by encountering encrypted files on servers.

In all cases involving Akira’s recent operations, CERT Intrinsec’s analysis showed that the attack was divided into 3 phases. During the first phase, Akira affiliates get into the network by leveraging stolen passwords or by exploiting CVE-2023-20269 (Cisco ASA and FTD) vulnerability, allowing them to conduct brute-force attack on local password without being detected. They then perform discovery actions such as network or Active Directory scanning. They establish their persistence in the information system by installing remote access tools or by creating local and domain accounts. At that point, affiliates move laterally, using Remote Desktop Protocol, to different parts of the infrastructure before collecting data, exfiltrating them with WinSCP or Filezilla, and deleting their tracks to avoid detection. The second phase lasts several days: affiliates stay stealthy. They might be studying exfiltrated data or assessing technical data collected from the information system. During the last phase, attackers come back to set up their last persistence points, disable protections, try to destroy backups and delete volume shadow copies before running their encryption binary on targeted servers.

This article presents the intrusion set involved in Akira’s operations handled by CERT Intrinsec, its tactics, techniques and procedures, as well as recommendations to follow in order to avoid facing such an incident.

CERT Intrinsec presentation

CERT Intrinsec is a French incident response team that performs its operations mainly on France’s sector. The team deals with about 50 major incidents per year and works to help its customers to recover from cyber-attacks and strengthen their security. Since 2017, CERT Intrinsec has responded to hundreds of security breaches involving companies and public entities. The majority of those incidents are related to cybercriminality and ransomware attacks with financial objectives, hence, CERT Intrinsec follows those groups activities and generates comprehensive intelligence from the field. ANSSI (French Cybersecurity Agency) granted CERT Intrinsec PRIS (State-Certified Security Incident Response Service Providers) certification. The latter testify that CERT Intrinsec meets specific incident response requirements, using dedicated procedures, qualified people and appropriate infrastructures. Should you need our expertises, Intrinsec provides Incident response & Crisis management services, Threat Intelligence services & datas, IOCs Feeds, Detection services (SOC/MDR/XDR), supported by a large set of other services (pentests & audits, consulting, …) .

Akira Ransomware

Akira ransomware is said to have started operating in March 2023 and targeted more than 140 organisations (according to its leak site). Just like many other ransomwares, the Akira’s encryption binary deletes volume shadow copies, targets specific file extensions and skip files located in some directories (such as ones containing system files). It seems that the encryption binary also shares obfuscation techniques with Conti ransomware. We can note that Akira appears soon after last operations spotted involving Conti ransom gang. Akira’s intrusion set shares also many techniques with other Ransomware-As-A-Service (RaaS) actors: LSASS dumping for credential harvesting, creation of schedule tasks to perform discovery actions, usage of publicly available tools such as PCHunter64 or Advanced IP Scanner. They also heavily rely on RDP protocol with administrator accounts for lateral movement and also manage to disable common defenses such as Windows Defender. Akira recently developed a Linux encryptor to encrypt ESXi virtual machines, but CERT Intrinsec has not observed this encryptor so far.

Akira ransomware gang claimed multiple victims from different countries, especially the United States of America, the United Kingdom of Great Britain and Northern Ireland and Canada. Even if manufacturing, education, construction, retail and consulting are subject to many attacks, Akira compromised information systems from a wide range of sectors and does not seem to target any of them. CERT Intrinsec handled incident responses for which attacks were not claimed. This raises questions about genuine motivations of Akira ransomware gang.

Akira Victimology

Victims analysis shows that majority of compromised companies are located in the USA (73%). United Kingdom and Canada follow with respectively 7% and 5% of referenced victims.

Regarding activity sectors, we have seen following trends:

• 14% of victims belong to manufacturing sector
• 11% in the education
• 9% construction and so on

Basically, all sectors are represented but in lower proportion.

Key takeaways

Investigations performed during Akira operations highlight that affiliates will use as many legitimate and living-of-the-land tools as possible, possibly to ensure EDR solutions bypass. For example, in one unique operation, we found at least 4 different command & control solutions such as AnyDesk, Teamviewer, OpenSSH Servers and MobaXterm. Moreover, in the first phase of the adversary’s operations, we notice adversaries efforts to stay relatively stealthy. They managed to tunnel their outgoing traffic through CloudFlare infrastructure, performed common reconnaissance tasks from servers where the EDR solution was not deployed, did not access to critical, and more likely supervised, infrastructure such as domain controllers. They conscientiously explored available file servers and managed to compress then exfiltrate data. They splitted exfiltration into multiple steps, exfiltrating data from a server before moving to another one.

The third part of operations, the encryption one, was marked by faster and « noisy » actions. Indeed, this phase took place in a few hours timeframe, during such they performed a new internal reconnaissance phase, moved laterally mainly on backup and virtualisation servers and finished by executing their encryption binary. Moreover, attackers performed many attempts to exfiltrate Active Directory information, performed multiple network scans with more or less success even from EDR monitored servers and also relied on tools such as Impacket, which can leave lots of characteristic footprints.

Operation timeline

All Akira’s operations share a common characteristic: they took place in 3 different phases, from the start until the end of attacks.

• First days of the intrusion are dedicated to ensure persistance mechanism on a few assets, perform initial internal discovery and manage to escalate privileges. Then we observed a pause in the operations.
• The second phase is dedicated to valuable data identification, gathering and exfiltration. We usually observed a pause of several days before the last phase.
• Last phase, the encryption one, usually takes place during a short timeframe, within a few hours. Attackers manage to ensure their persistence on multiple assets, even if initial ones are already in place. They perform new network scans, probably to get the list of assets required by the encryption. Affiliates usually tried to delete backups before running the ransomware binary on as many assets as possible.

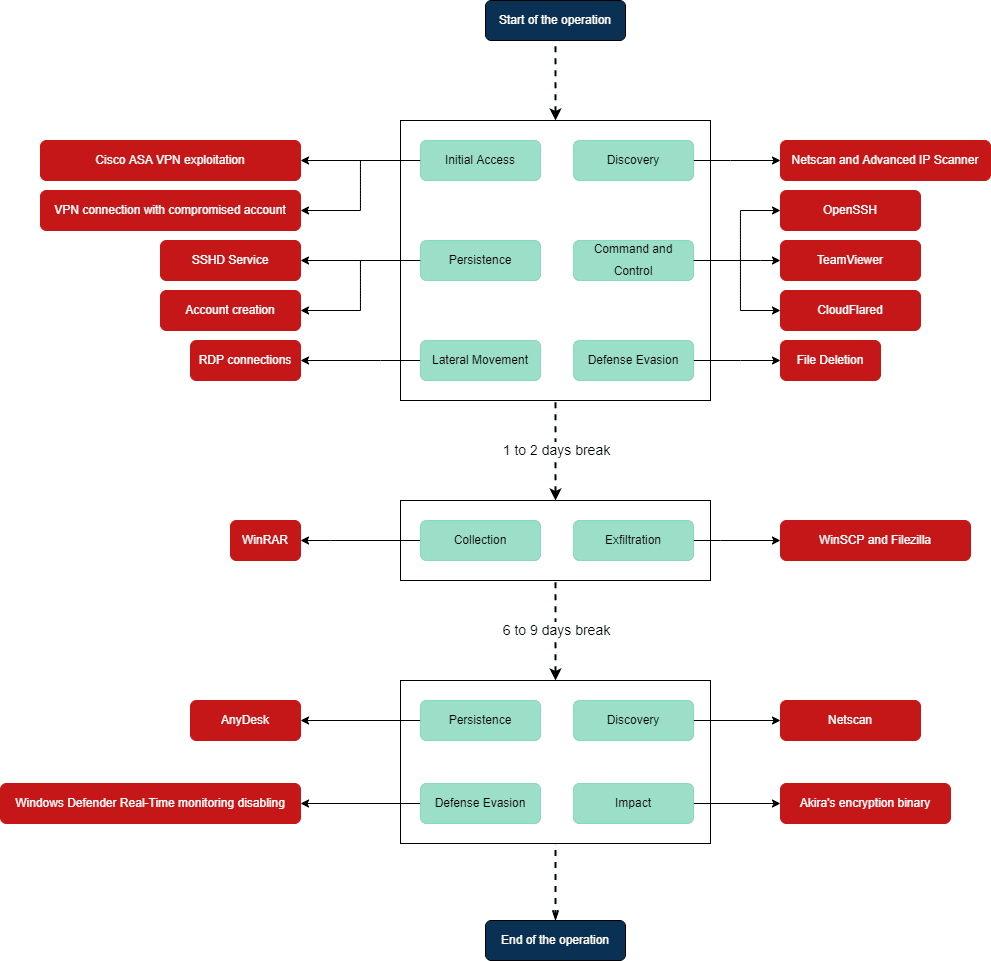

The following diagram shows these 3 steps:

Akira’s operation timeline

Tactics, techniques and procedures

Initial Access

Adversaries got into the network by leveraging compromised credentials of legitimate accounts and establishing VPN sessions using them. Some of these accounts might have been compromised way before the incident. In two cases, attackers exploited CVE-2023-20269 vulnerability on a Cisco ASA VPN appliance. This vulnerability allows an unauthenticated attacker to conduct a brute-force attack on any local account while bypassing the maximum number of attempts defined.

In order to avoid the use of legitimate accounts as initial access, CERT Intrinsec recommends to:

• Ensure that internet facing solution, such as VPN appliances are patched in priority when security fixes are published by editors
• Enforce Multi-Factor Authentication on VPN solutions
• Apply the principle of least privilege when granting information system access to partners
• Review Active Directory objects to identify old, disabled or useless accounts, on a regular basis
• Enforce a strong password policy
• Raise users’ awareness of phishing emails and password reuse
• Ensure that no account with administrative privileges can connect directly into the VPN solution

Execution

Attackers leveraged PowerShell to execute commands to install Remote Server Administration Tools (RSAT-AD), to list domain users, computers and trusts. To do so, they used Get-ADUser and Get-ADComputer PowerShell cmdlets. They also created a new firewall rule to allow SSH traffic. To perform discovery and persistence actions, attackers leveraged Windows Command Shell as well as WMI via Impacket.

To spot PowerShell and Windows shell activities, you can implement the following measures:

• Enable PowerShell logging features (Transcript, ScriptBlockText, ConsoleHost_history)
• Enable Sysmon logging on devices
• Monitor equipments to detect execution actions, especially PowerShell and Windows Shell commands
• Improve detection means by building a Security Operations Center (SOC)

Persistence

They created multiple local and domain accounts, using the following Impacket commands, to make sure not to lose privileges if one of them is disabled or deleted.

Attackers compromised legitimate accounts as well.

As explained previously, attackers used a lot of legitimate remote administration tools to maintain persistence on information system, they are usually configured as Windows Services. To detect such actions, you can:

• List legitimate remote administration tools, used by your company, to spot easily those used by attackers
• Restrict the use of these tools as much as possible
• Monitor actions performed by administrative accounts
• Monitor suspicious Windows Services creations

Privilege Escalation

Throughout operations, attackers compromised several accounts, many of them being privileged. They then used them to gain even more privileges. These accounts were:

• Administrator accounts
• Unused administrator account
• Account used on printers
• Service provider account
• Monitoring account
• Accounting account
• Domain administrator account

Several accounts were compromised throughout the operation. It is possible to avoid such actions by implementing the following recommendations:

• Keep an inventory of accounts, especially administrative ones, up-to-date
• Forbid RDP communication between equipments when it is not necessary
• Deploy Windows Credential Guard to protect credentials on systems
• Use dedicated administrative accounts to perform actions related to information system administration only

Defense Evasion

During operations, affiliates tried to impair defenses by either deleting evidences or avoiding detection. They actually removed part of their tools as well as the exfiltrated archives containing data.

After creating a malicious account, affiliates modified the following registry key in order to hide this account from the logon screen.

They created a rule to enable SSH traffic, as explained in the Persistence section, and they edited the SYSTEM hive to enable RestrictedAdmin feature. This latter is a way to connect to a server without sending credentials to it. It prevents administrative credentials from being exposed to an attacker who could leverage them to escalate privileges.

The command used to enable RestrictedAdmin is as follows:

Finally, attackers disabled Windows Defender Real-Time Monitoring feature.

In order to slow down forensic investigations and avoid detection, attackers conducted multiple actions. It is possible to detect those actions and to lower their impacts, by implementing the following measures:

• Collect logs from all equipments, forward them to a central server dedicated to logs storage
• Monitor firewall rules changes

Discovery

As operations were on their way, attackers kept looking for information on targeted systems. They used network scanning tools named Netscan and Advanced IP Scanner several times. They also browsed file servers, looking for interesting data to exfiltrate. They used Impacket commands and nltest built-in tool to perform some of their actions.

The above commands perform the following actions:

• Tell PowerShell to display all occurrences when formatting results
• Install Remote Server Administration Tools
• List all Active Directory users, all their properties and select several of them to display
• List all Active Directory computers, all their properties and select several of them to display

As discovery is often the first part of an intrusion set, it is crucial to detect it as early as possible to block subsequent phases of the attack. To do so, you should:

• Monitor security event logs and network connections to spot network scan activities, accounts enumeration, etc
• Monitor systems activities to detect commands executed to remote hosts

Lateral Movement

Attackers used lateral movement techniques to transfer their tools across the network, to connect to devices and to execute commands on remote hosts. They utilised remote administration shares (ADMIN$) to drop files on remote computers and connects via Remote Desktop Protocol to different servers to achieve their malicious actions. Besides, Impacket was used to execute commands on remote systems with Windows Administration Share. Multiple hostnames were found as WorkstationName when attackers tried to authenticate to equipments:

• DESKTOP-3GCJKGQ
• WIN-KFUMVU06ESH
• WIN-OX9CQTDSEIK
• WIN-MV7S8OJTOIK
• HOST14872171171
• DESKTOP-KT76603

Attackers leveraged local accounts as well, adding them to Administrators and Remote Desktop Users groups, using net localgroup command:

They also used Enter-PSSession PowerShell command to start interactive sessions on remote devices and enable Remote Desktop Protocol, as shown below

During all operations, attackers easily moved from one equipment to another, and from one domain to another, especially leveraging network shares. To avoid such lateral movements, CERT Intrinsec recommends to:

• Monitor information systems to detect suspicious network share accesses (use of Impacket, network shares scan, etc)
• Restrict access to administrative shares as much as possible
• Build efficient isolation procedures to isolate a equipment, a VLAN or even the entire information system

Collection

To reduce the size of data to exfiltrate and to make the process more efficient, affiliates used WinRar utility to create archives containing stolen data.

As ransomware operators often target information about human resources, employees, projects, etc, it is very important to:

• Identify sensitive data and its location, and encrypt it
• Deploy a Data Loss Prevention solution
• Monitor access to sensitive data

Command and Control

Apart from using AnyDesk, TeamViewer, OpenSSH, MobaXTerm as Remote Administration Tools and Cloudflared to tunnel malicious traffic through the CloudFlare infrastructure, affiliates employed file.io, a file sharing service, to download their tools on compromised systems. They also leveraged VPN accesses to conduct their activities on the network.

You can implement the following measures to detect command and control activities:

• Monitor systems and network traffic to identify suspicious file sharing websites or illegitimate cloud services
• Install an Intrusion Prevention Solution to monitor traffic and find unusual remote hosts, flagged C2 domain/IP address/port, etc

AnyDesk

The first way to perform command and control activities is the installation of AnyDesk, a remote desktop application. The software was downloaded from file.io platform. Several files related to AnyDesk installation were discovered:

• C:\Users\[REDACTED]\Downloads\gcapi.dll
• C:\Users\[REDACTED]\Downloads\AnyDesk.exe
• C:\Windows\Temp\gcapi.dll
• C:\ProgramData\gcapi.dll

A service was also created to make sure that the persistence stays up:

SSH Server

An SSH server was installed on several servers in order to maintain the access to the information system by tunneling adversaries traffic through an SSH session. OpenSSH was used to create this SSH server and to be able to connect to compromised systems. CERT Intrinsec found evidences of OpenSSH in many directories:

• C:\Users\[REDACTED]\Downloads\OpenSSH.msi\
• C:\Program Files\OpenSSH\sshd.exe\
• C:\Users\[REDACTED]\AppData\Local\Temp\7\[redacted]\bin\ssh.exe\

The service runs sshd.exe:

A firewall rule enabling SSH traffic was created as well on servers: its display name is OpenSSH Server (sshd). The rule is enabled and allows the inbound traffic for protocol TCP on port 22.

TeamViewer

TeamViewer was installed to allow access remotely to devices (C:\Program Files (x86)\TeamViewer\TeamViewer.exe), as well as to ensure persistence to them.

MobaXTerm

Attackers downloaded MobaXTerm, using an administrator account, on one of the domain controllers (C:\Users\[REDACTED]\Downloads\MobaXtermInstallerv23.2.zip).

Cloudflared

Attackers installed Cloudflared, a utility used to create tunnels between compromised hosts and Cloudflare solution. The command line to build a tunnel is as follows:

They renamed the cloudflared binary to regid.exe to hide in plain sight.

Exfiltration

After creating archives containing collected files, affiliates used different softwares to exfiltrate several gigabytes of data: WinSCP and FileZilla.

FileZilla’s recentservers.xml file stores connection information and is very important to identify where data have been sent.

For the past few years, adversaries heavily relied on cloud storage provider such as Mega or PCloud to store exfiltrated data. Akira’s operators behave slighly differently by uploading encrypted rar archives directly on their own servers (A Windows workstation with OpenSSH service installed on it). These servers are part of the same Autonomous System (30083 – AS-30083-GO-DADDY-COM-LLC), used throughout different operations.

As part of the double extortion strategy, attackers exfiltrate sensitive data from systems and threaten to publish it on their leak sites. Therefore, it is crucial to:

• Monitor outgoing traffic (in terms of volume, IP reputation, time of communication, etc)
• Improve network logging policy to ensure evidences availability in case of an investigation

Impact

Attackers tried to delete VEEAM backups by connecting to the management console and deleted Volume Shadow Copies using PowerShell commands:

They finally encrypted equipments on the information system, using an Akira encryption binary.

To prevent victims from recovering their data, ransomware operators try to locate backups so as to delete them prior to encrypting files. To avoid this impact, CERT Intrinsec recommends to:

• Deploy a backup solution and test restoration process on a regular basis
• Keep at least one version of the backups outside the information system
• Monitor access to backup infrastructure

MITRE ATT&CK Matrix

Indicators of Compromise

Hostname

IP Addresses

Services

Commands

Registry Keys

Files
